Location：Technology

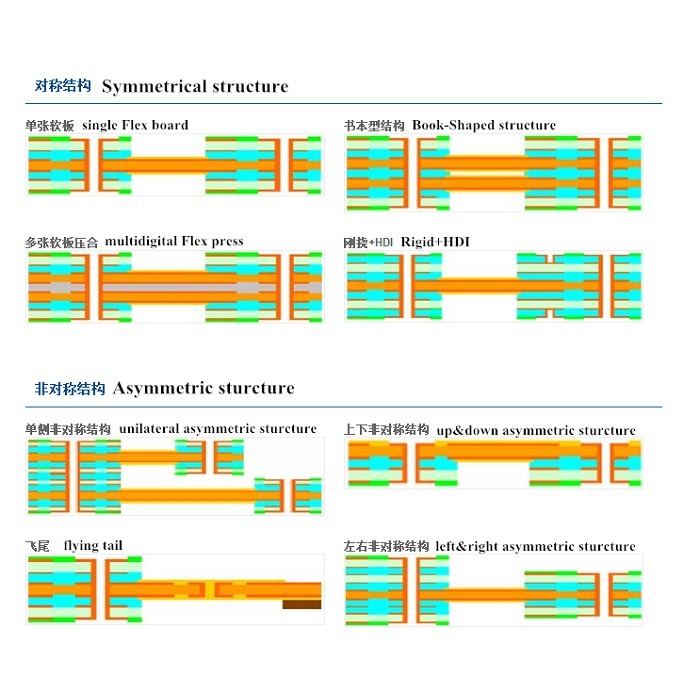

 Rigid-Flex Structure Type



Heavy Copper

Production Capablity: 8oz

Pilot Capablity: 12oz

Area of Application: Power module in power conversion and Power module

A. Inner Layer Capability

Maximum Inner layer copper thickness：12oz(400um)

line width/line spacing:20mil/20mil(Trace top)

Etch factor:2.5







B. Outer Layer Capability

Maximum Inner layer copper thickness：6oz(200um)

line width/line spacing:16mil/16mil

Etch factor:1.8





C. Blind Via

 HDI Penetrable Inner copper thickness :3oz(105um)
